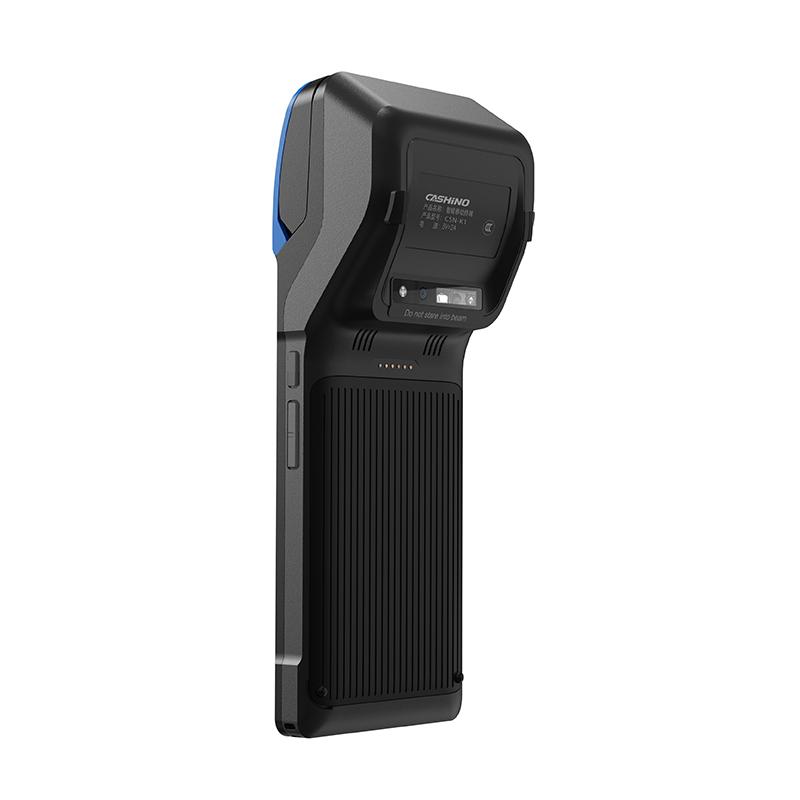

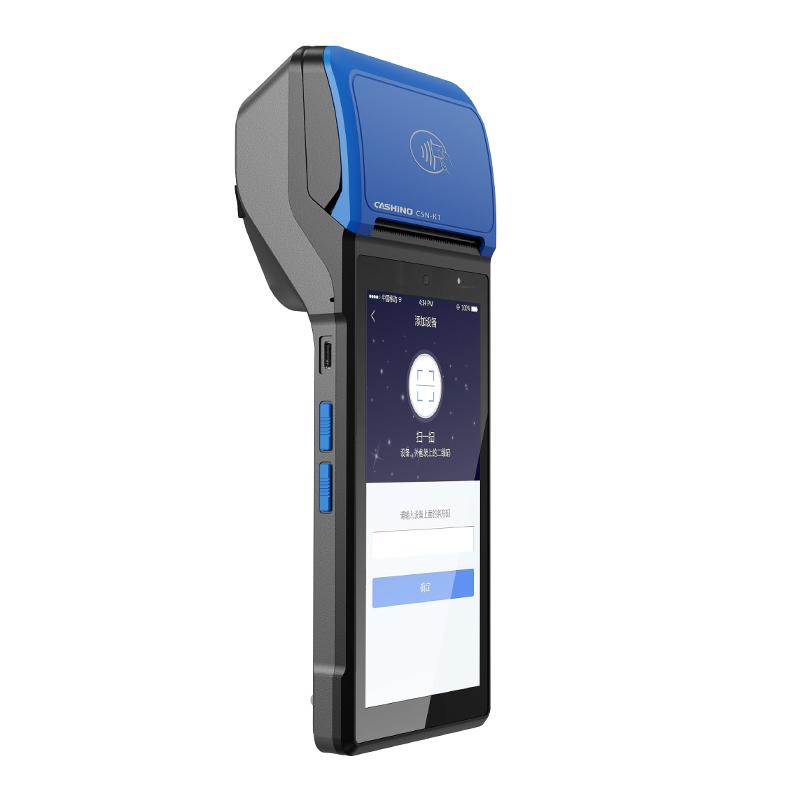

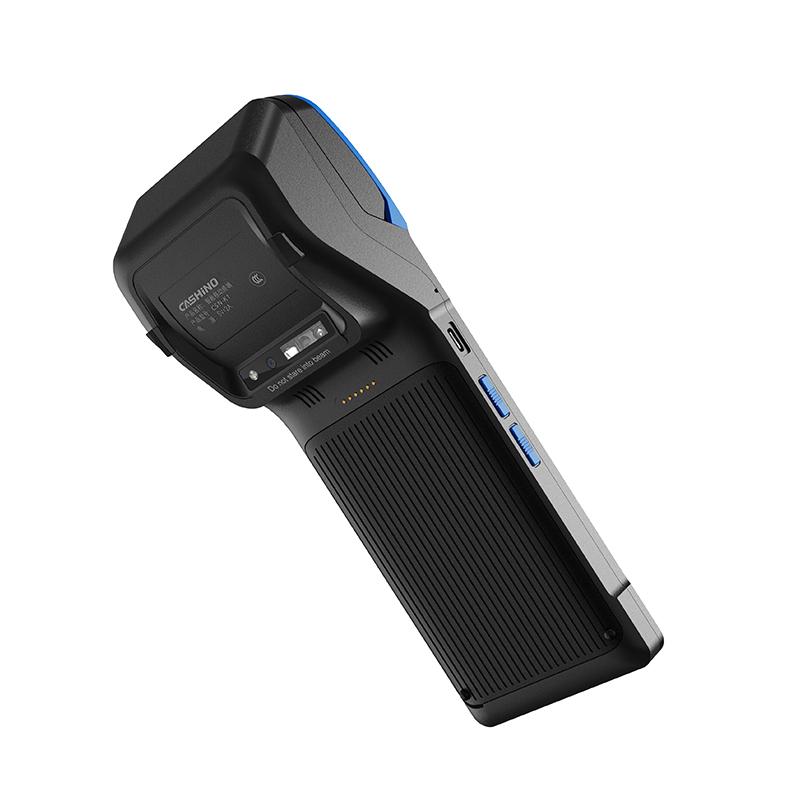

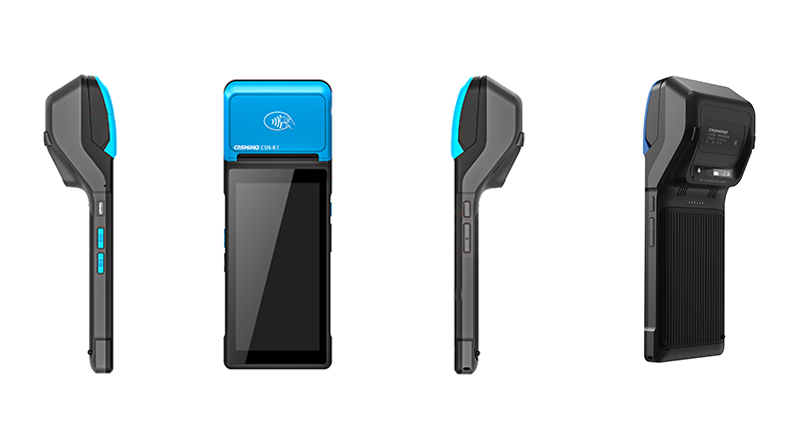

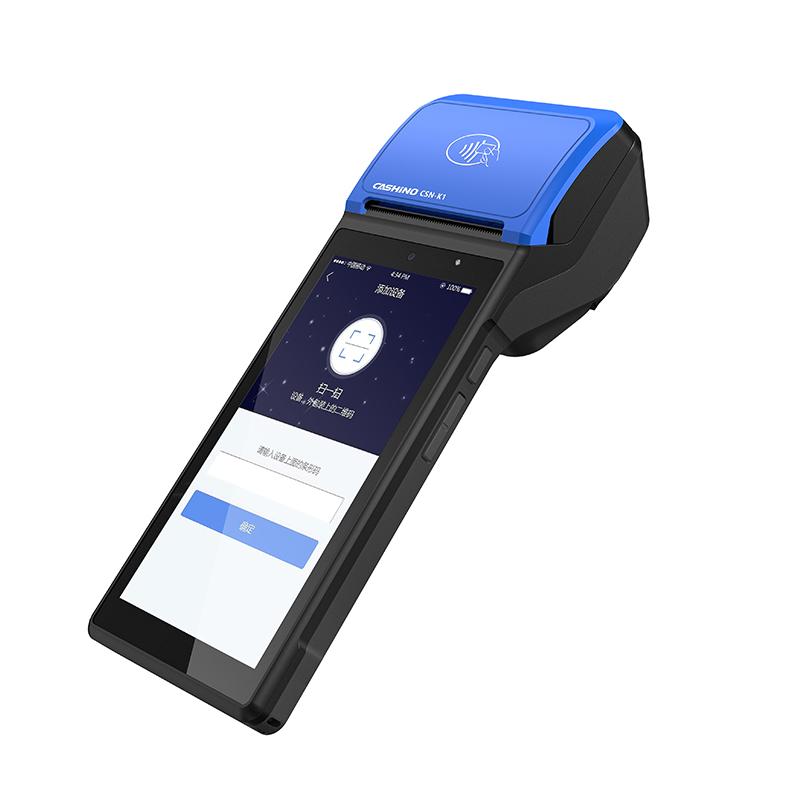

CSN-K1 Smart Android Handheld Pos Terminal

Performance parameters

CPU

ARM Contex-A53 2.0GHz

OS

Android 12.0

Memory

2GB RAM+16GB ROM

3GB RAM+32GB ROM（Optional）

SIM Card Slots

1 x Nano SIM Card 1 x Micro SIM Card（eSIM Card）Optional

PSAM Card Slots

2 x standard PSAM holder；Complies with ISO7816 specifications

Expansion Storage

1 x MicroSD card，Supports up to 256GB

Physical parameters

Display

5.45”HD+ IPS Display，720×1440 pixels Multi-point Capacitive Touchscreen

Battery

Removable Lithium Battery,7.6V/2500mAh

Dimensions

212(L)×78(W)×17(H)mm

Weight

354 g（with Battery）

Ports

1 x USB Type-C Interface，Support OTG

Expansion Ports

6 pin POGOPIN Supports charging and USB communication

Buttons

Power×1、Volume key ×2,ON/OFF button、User define button×2

Prompts

Vibration reminder

Audio

Built-in speaker（1W）、single microphone

Sensor

Gravity Sensor

Printer

58mm thermal receipt printer、printing speed:70mm/s、paper roll diameter:40mm

Environment

Operating Temperature

0℃ ～+50℃

Storage Temperature

-20℃ ~ +70℃

Humidity

5% ~ 95%RH（No condensation）

Drop Specification

1.2m

Electrostatic Protection（ESD）

±15 kV air discharge，±8 kV direct discharge

Print parameters

Printing method

Thermal line printing

Printing speed

Max 80mm/s（receipt）、Max 60mm/s（label）

Resolution

384dots/line

Paper Type

Thermal Label Paper、Receipt Paper、Adhesive Paper

Paper Width

58mm

Paper roll Diameter

40mm

Printing Life

50 km（Receipt）/ 25 km（Label）

Sensor

Paper end：photoelectric sensor、Temperature detection of thermal head：thermistor

Data collection

2D image scanning engine (optional)

Support all internationally recognized one-dimensional and two-dimensional barcodes

Barcode

1D：EAN13, EAN8, UPCA, UPCE, Code 128, Code 39, Codabar, UCC/EAN128, RSS, ITF, ITF14, ITF6, ISSN, ISBN, Standard 25, Matrix 25, Industrial 25, Plessey, MSI Plessey, Code 11, Code 93, etc.

2D：PDF417, Micro PDF417 , QR Code, Micro QR , DataMatrix, AZTEC, Chinese-sensible Code, Maxicode, Composite, etc.

Image Capture

5MP Rear Camera，Flashlight，support 1D/2D barcode

Forward 2MP fixed focus camera (optional)

Communication transmission

WWAN

4G all network connectivity, available in Eurasian and American versions

Wi-Fi

Wi-Fi 2.4Ghz/5GHz、support IEEE 802.11 a/b/g/n

Bluetooth

Bluetooth 4.1 + BR/EDR + BLE

GPS

Support GPS、Glonass、Beidou、AGPS

NFC（optional）

13.56MHZ、support TypeA&B、ISO14443A/14443B/15693

Mifare、Felica（optional）

Wireless spectrum

Eurasian

FDD-LTE:B1/B3/B5/B7/B8/B20/B26/B28 TDD-LTE:B38/B39/B40/B41 WCDMA:B1/B2/B5/B8 GSM/EDGE/GPRS：850/900/1800/1900

Latin American

FDD-LTE:B2/B4/B5/B7/B12/B13/B14/B17/B28 TDD-LTE:B38/B39/B40/B41 WCDMA：B2/B4/B5/B8 GSM/EDGE/GPRS：850/900/1800/1900

Accessories

Adapter

DC 5V/2A ，Non wired charging head, with Type-A motherboard interface

Charging cable

Type-C interface 1m charging cable

Printing paper

Thermal paper φ40*57mm

Manual

Including certificate of conformity and warranty card
