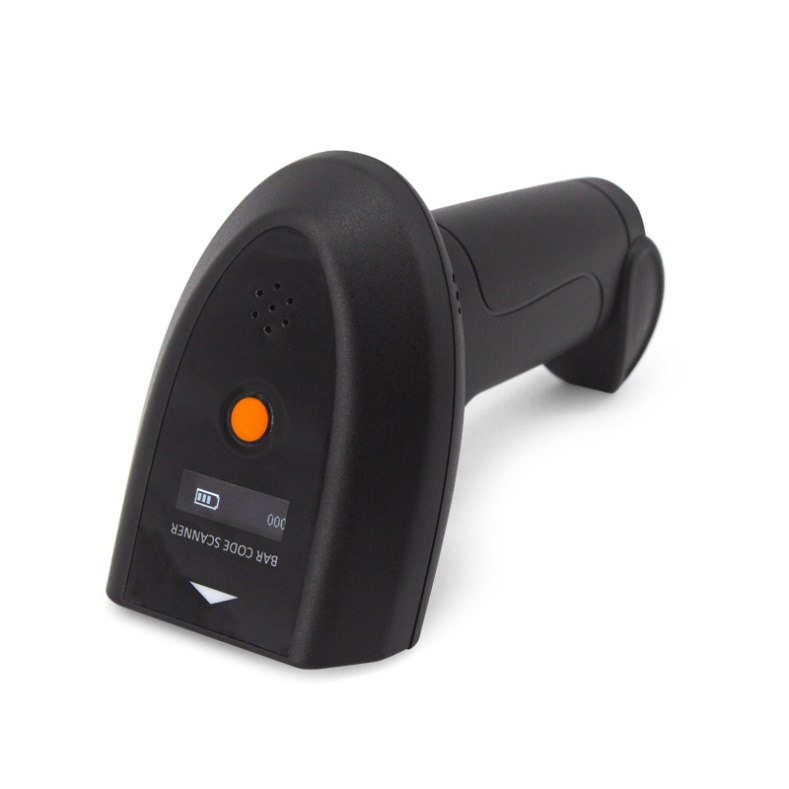

2D Handheld Barcode Scanner

Model

BS-V8

Enter the voltage

DC 5 volts ± 0.25 volts

rate

1.60W (work);

The current

120-200 mAh (working);10-20 mAh (standby)5 s/-10% VDC s 130-350 mA

The rate of identification

640 × 480 pixels

Scan angle

Rotateby 3 60 degrees, tilt ±64degrees, deflect ±34degrees

Battery capacity

2000mA

Wireless distance

50-80 m

Wireless storage

5000-20,000

Wireless standby

30 days

Wireless continuous operation

72 hours

The type of decoding

1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11,
CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, ChinaPost 25, GS1 Composite, etc

2D: QR Code, Data Matrix (DM), PDF417, Han Xin, Micro PDF417, Micro QRCode, MaxiCode, Aztec Code, Code16K, etc

Read accuracy

1D : ≥4 thousand 2D : ≥7 thousand

Print contrast

≥30%

Tips

Buzzer, voice broadcast,OLED display

The system interface

USB keyboard

How it was triggered

Manual

Appearance size

150mmL×67mmW×98mmH

Weight

150g

Cable standards

Straight,1.5 m.

The type of interface

Printer USB

Shell material

PC+ABS

Temperature

0degrees C to 50 degrees C (working);

Wetness

5% to 95% (no condensation)

How to set it up

Manual (scan to set barcodes in turn)

The degree of solution

3.5mil (high densityseries),1mil s 0.0254mm

Read depth of field

3.5 mil: Code128 (9 characters)

15mm—35mm

5 mil: Code39 (20 characters)

33mm—77mm

13 mil: UPC(12 characters).

17mm—150mm

20 mil: Code39 (5 characters)

55mm—195mm

6.7 mil:PDF417 (20 characters)

25mm—90mm

10 mil: DM (20 characters)

15mm—115mm

20 mil: QR (20 characters)

9mm—175mm

Security level

EMC Electromagnetic Compatibility: EN55022, EN55024
Electrical safety: EN60950-1
Waterproof and dust seal rating: IP54
Seismic resistance: 5 or more 1.5 meters of height fell to the concrete floor impact
